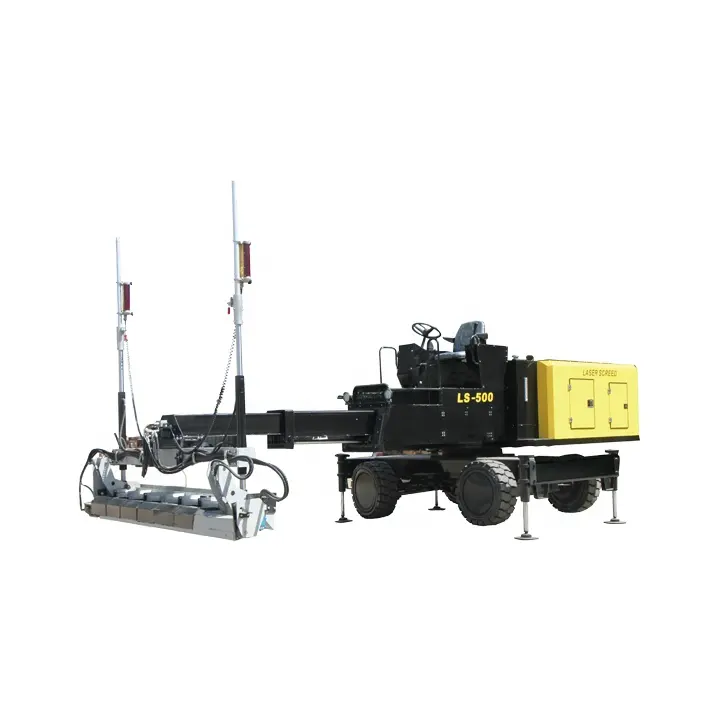

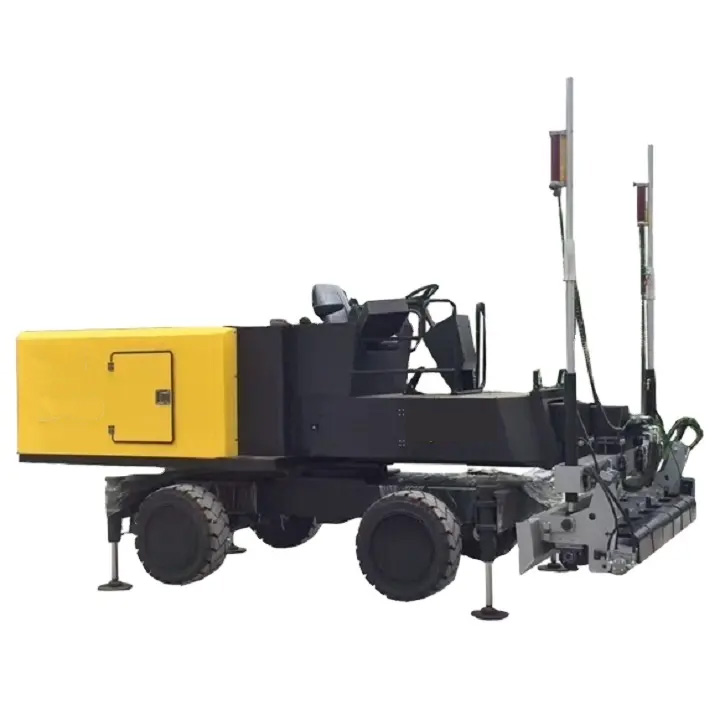

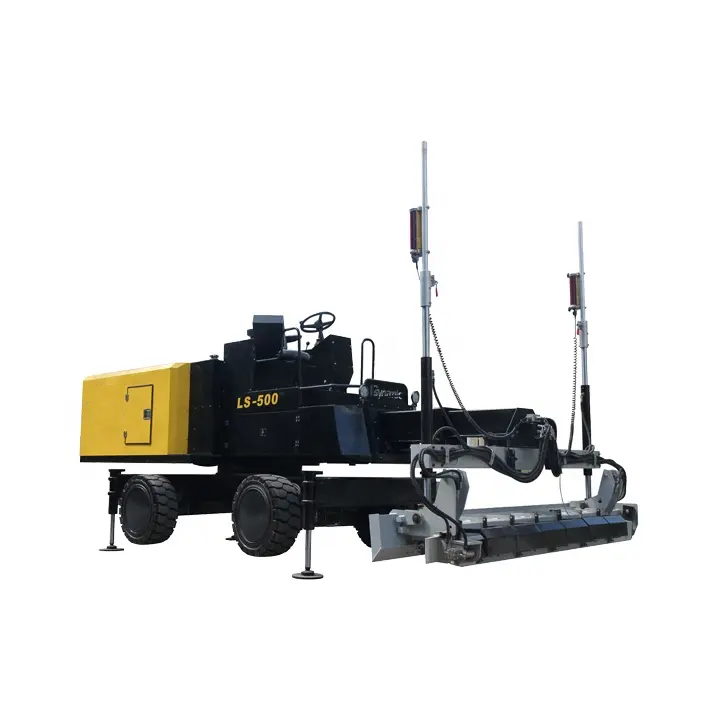

LS500
EMODA
Emoda Laser Screed series could gractly improvev the concrete smoothness and compaction, as well as prolong the service life of concrete floor. Widely used in modern industrial workshop, large shopping malls, warehouse and other construction of large area concrete ground.
1. High construction quality: The ground constructed by the Laser Screed machine average flatness can reach 2mm.
2. Fast construction speed: On average, 3000 square meters of ground pouring can be completed every day.
3. Reduce the amount of formwork support: the formwork consumption is only 38% of the traditional operation method.
4. High degree of automation and low labor intensity: reduce operators by 30% and reduce labor intensity at the same time.
5. High economic benefit: 30% lower cost per square meter than traditional process
| Model | LS-500 |
| Weight kg | 5200 (kg) |
| Dimension | L5150xVV3140xH2230 |
| One-time leveling area | 0-18 (km/h) |
| Walking drive | High torgue hydraulic motor four-wheel drive |
| Flattening head width | 3000 (mm) |
| Paving thickness | 30-350 (mm) |
| Exciting force | 1000 (N) |
| Engine | 2V78F-3 |
| Power | 17.6/24(kW/hp) |
| Laser system | Dynamic digital dual slope rmote control transmitter |
| Laser system control mode | Laser scanning + high precision servo push rod |
Emoda Laser Screed series could gractly improvev the concrete smoothness and compaction, as well as prolong the service life of concrete floor. Widely used in modern industrial workshop, large shopping malls, warehouse and other construction of large area concrete ground.
1. High construction quality: The ground constructed by the Laser Screed machine average flatness can reach 2mm.
2. Fast construction speed: On average, 3000 square meters of ground pouring can be completed every day.
3. Reduce the amount of formwork support: the formwork consumption is only 38% of the traditional operation method.
4. High degree of automation and low labor intensity: reduce operators by 30% and reduce labor intensity at the same time.
5. High economic benefit: 30% lower cost per square meter than traditional process
| Model | LS-500 |
| Weight kg | 5200 (kg) |
| Dimension | L5150xVV3140xH2230 |
| One-time leveling area | 0-18 (km/h) |
| Walking drive | High torgue hydraulic motor four-wheel drive |
| Flattening head width | 3000 (mm) |
| Paving thickness | 30-350 (mm) |
| Exciting force | 1000 (N) |
| Engine | 2V78F-3 |
| Power | 17.6/24(kW/hp) |
| Laser system | Dynamic digital dual slope rmote control transmitter |
| Laser system control mode | Laser scanning + high precision servo push rod |
